Multi Turn Bevel Gearbox
Welcome to Viral Industries – a leading multi-turn bevel gearbox manufacturer and supplier in the USA, Europe, Canada & Gulf. We have been in the industry for 13+ years and have built a reputation for producing top-quality gearboxes designed to last. Our products are perfect for various industrial applications and are known for their durability and reliability. We understand that our customers rely on our gearboxes to keep their operations running smoothly, and we work hard to ensure that they receive the best products and services. Furthermore, our Multi-Turn Bevel Gearbox can deliver torque ranging between 300 Nm – 50000 Nm (221 lbf-ft – 36,880 lbf-ft).
If you need a multi-turn bevel gearbox, We invite you to give us a try. Our team is ready to help you find the perfect gearbox for your needs, and we offer competitive pricing and excellent customer service. Contact us today to learn more.
Note: Our manufacturing unit is only in India, but we export multi-turn bevel gearboxes to the USA, Europe, Canada, and Gulf.
Models of Multi-Turn Bevel Gearbox
Our multi-turn bevel gearbox models, VGB, VGBE, VGBS, and VGBES, deliver torque from 300 Nm to 50,000 Nm with 90° input/output alignment, IP65–IP68 protection, and ISO 5210 compliance for gate, globe & sluice valves in water, oil, gas & power applications.

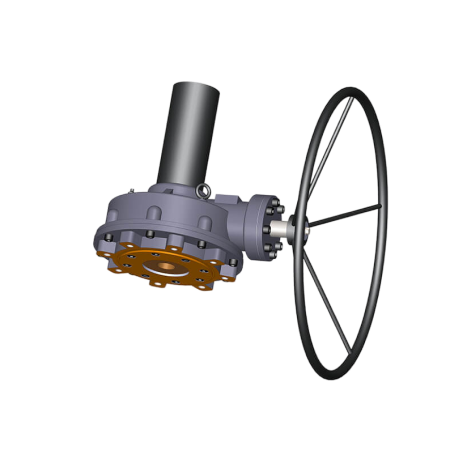

Multi-Turn Bevel Gearbox (VGB Models for Manual or Hand-Wheel Operation)
Engineered for gate, globe & sluice valves, our VGB series delivers 300-50,000 Nm torque with low hand-wheel effort and 90° input/output alignment. Ideal for water, power & industrial systems where space-saving, precise manual control is essential.
Get a Quote
| Viral Ind. Model No. | Output Torque Capacity | Gear Ratio | M.A. (±10%) | Thrust (kN.) | Hand-Wheel Diameter | Hand-wheel Effort | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm. | lbf-ft | mm | Inch | lbs | Kilogram | ||||||||
| VGB 300 | 300 | 221 | 2.5:1 | 2.17 | 90 | 300 | 12 | 208 | 94 | ||||
| VGB 470 | 470 | 347 | 3:1 | 2.64 | 120 | 400 | 16 | 200 | 91 | ||||
| VGB 600 | 600 | 443 | 3.25:1 | 2.86 | 150 | 400 | 16 | 236 | 107 | ||||
| VGB 1000 | 1000 | 738 | 3.73:1 | 4.5:1 | 3.3 | 4 | 230 | 500 | 20 | 274 | 224 | 124 | 102 |
| VGB 1500 | 1500 | 1106 | 4:1 | 6.3:1 | 3.52 | 5.53 | 263 | 500 | 20 | 383 | 244 | 174 | 111 |
| VGB 2500 | 2500 | 1844 | 5.9:1 | 5.2 | 326 | 600 | 24 | 362 | 164 | ||||
| VGB 4000 | 4000 | 2950 | 6:1 | 5.28 | 450 | 600 | 24 | 568 | 258 | ||||
| VGB 6000 | 6000 | 4425 | 6.1:1 | 5.38 | 680 | 750 | 30 | 669 | 304 | ||||
| VGB 8000 | 8000 | 5900 | 6.1:1 | 5.38 | 900 | 750 | 30 | 892 | 405 | ||||
| VGB 10000 | 10000 | 7376 | 5.8:1 | 5.08 | 1150 | 900 | 36 | 983 | 446 | ||||
| VGB 13000 | 13000 | 9588 | 5.3:1 | 4.69 | 1420 | 900 | 36 | 1385 | 628 | ||||
| VGB 16000 | 16000 | 11801 | 5.3:1 | 4.69 | 1650 | 900 | 36 | 1704 | 773 | ||||
| VGB 20000 | 20000 | 14751 | 5.2:1 | 4.60 | 2200 | 1000 | 40 | 1958 | 888 | ||||
| VGB 30000 | 30000 | 22127 | 5.3:1 | 4.69 | 3350 | 1000 | 40 | 2876 | 1304 | ||||
| VGB 50000 | 50000 | 36880 | 6.25:1 | 5.50 | 4800 | 1000 | 40 | 4090 | 1855 | ||||
NOTE: VGB Models are available with higher ratio.
1. VGB-4000 WITH GEAR RATIO 8:1
2. VGB-6000 WITH GEAR RATIO 8:1
3. VGB-8000 WITH GEAR RATIO 8:1

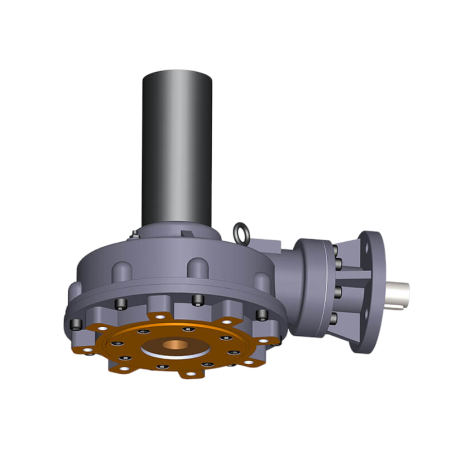

Multi-Turn Bevel Gearbox (VGBE Models for Actuator Operation)
Engineered for automated gate, globe & sluice valves, our VGBE series delivers 300-50,000 Nm torque with 90° input/output alignment and ISO 5210 flanges. Ideal for water, power & industrial systems needing precise, high-torque actuator control.
Get a Quote
| Viral Ind. Model No. | Output Torque Capacity | Gear Ratio | M.A. (±10%) | Thrust (kN.) | Input Torque Capacity | Mounting Flange at Actuator Side (ISO 5210) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm. | lbf-ft | mm | Inch | |||||||||
| VGBE 300 | 300 | 221 | 2.5:1 | 2.17 | 90 | 138 | 102 | F10, F14 | ||||
| VGBE 470 | 470 | 347 | 3:1 | 2.64 | 120 | 178 | 131 | F10, F14 | ||||
| VGBE 600 | 600 | 443 | 3.25:1 | 2.86 | 150 | 210 | 155 | F10, F14 | ||||
| VGBE 1000 | 1000 | 738 | 3.73:1 | 4.5:1 | 3.3 | 4 | 230 | 305 | 249 | 225 | 184 | F10, F14 |
| VGBE 1500 | 1500 | 1106 | 4:1 | 6.3:1 | 3.52 | 5.53 | 263 | 426 | 271 | 314 | 200 | F14, F16 |
| VGBE 2500 | 2500 | 1844 | 5.9:1 | 5.2 | 326 | 482 | 356 | F14, F16 | ||||
| VGBE 4000 | 4000 | 2950 | 6:1 | 5.28 | 450 | 758 | 559 | F14, F16 | ||||
| VGBE 6000 | 6000 | 4425 | 6.1:1 | 5.38 | 680 | 1116 | 823 | F16, F25 | ||||
| VGBE 8000 | 8000 | 5900 | 6.1:1 | 5.38 | 900 | 1488 | 1097 | F16, F25, F30 | ||||
| VGBE 10000 | 10000 | 7376 | 5.8:1 | 5.08 | 1150 | 1967 | 1451 | F25, F30 | ||||
| VGBE 13000 | 13000 | 9588 | 5.3:1 | 4.69 | 1420 | 2770 | 2043 | F30, F35 | ||||
| VGBE 16000 | 16000 | 11801 | 5.3:1 | 4.69 | 1650 | 3409 | 2514 | F30, F35 | ||||
| VGBE 20000 | 20000 | 14751 | 5.2:1 | 4.60 | 2200 | 4352 | 3210 | F30, F35 | ||||
| VGBE 30000 | 30000 | 22127 | 5.3:1 | 4.69 | 3350 | 6392 | 4715 | F30, F35, F40 | ||||
| VGBE 50000 | 50000 | 36880 | 6.25:1 | 5.50 | 4800 | 9091 | 6705 | F30, F35, F40 | ||||
NOTE: VGBE Models are available with higher ratio.
1. VGBE-4000 WITH GEAR RATIO 8:1
2. VGBE-6000 WITH GEAR RATIO 8:1
3. VGBE-8000 WITH GEAR RATIO 8:1

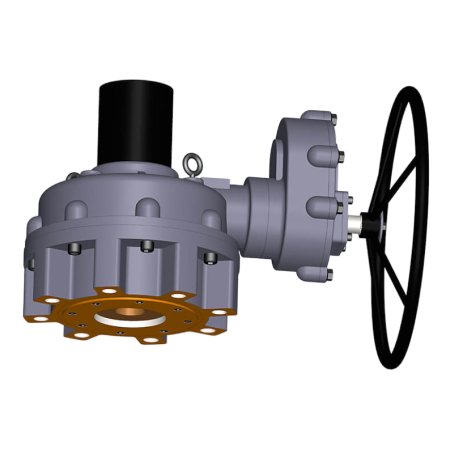

Multi-Turn Bevel Gearbox with Spur Gearbox (VGBS Models for Manual or Hand-Wheel Operation)
Engineered for high-thrust gate & globe valves, our VGBS series delivers 1,000-50,000 Nm torque with low hand-wheel effort and 90° input/output alignment, ideal for water, power & industrial systems needing precise manual control.
Get a Quote
| Viral Ind. Model No. | Output Torque Capacity | Gear Ratio | M.A. (±10%) | Thrust (kN.) | Hand-Wheel Diameter | Hand-wheel Effort | |||||||||||
| lbs | kilogram | ||||||||||||||||
| Nm. | lbf-ft | A | B | C | A | B | C | mm | Inch | A | B | C | A | B | C | ||
| VGBS 1000 | 1000 | 738 | 14:1 | 9:1 | 7:1 | 11.6 | 7.7 | 6.3 | 230 | 500 | 20 | 77 | 117 | 142 | 35 | 53 | 65 |
| VGBS 1500 | 1500 | 1106 | 19:1 | 12:1 | 10:1 | 16.1 | 10.6 | 8.7 | 263 | 500 | 20 | 84 | 127 | 155 | 38 | 57 | 70 |
| VGBS 2500 | 2500 | 1844 | 37:1 | 25:1 | 17.5:1 | 31.3 | 21.3 | 14.8 | 326 | 600 | 24 | 60 | 88 | 126 | 27 | 40 | 57 |
| VGBS 4000 | 4000 | 2950 | 46:1 | 31:1 | 21:1 | 39.1 | 26.2 | 18.1 | 450 | 600 | 24 | 77 | 114 | 166 | 35 | 52 | 75 |
| VGBS 6000 | 6000 | 4425 | 47:1 | 33:1 | 23:1 | 40.3 | 27.8 | 19.6 | 680 | 750 | 30 | 89 | 130 | 183 | 41 | 59 | 83 |
| VGBS 8000 | 8000 | 5900 | 58:1 | 38:1 | 26:1 | 49.4 | 32.5 | 22.1 | 900 | 750 | 30 | 97 | 148 | 217 | 44 | 67 | 99 |
| VGBS 10000 | 10000 | 7376 | 60:1 | 41:1 | 29:1 | 51.3 | 34.9 | 24.5 | 1150 | 900 | 36 | 98 | 143 | 204 | 44 | 65 | 92 |
| VGBS 13000 | 13000 | 9588 | 65:1 | 43:1 | 30:1 | 55.5 | 37 | 25.6 | 1420 | 900 | 36 | 117 | 176 | 254 | 53 | 80 | 115 |
| VGBS 16000 | 16000 | 11801 | 65:1 | 43:1 | 30:1 | 55.5 | 37 | 25.6 | 1650 | 900 | 36 | 144 | 216 | 313 | 65 | 98 | 142 |
| VGBS 20000 | 20000 | 14751 | 76:1 | 49:1 | 33.5:1 | 64.7 | 42 | 28.5 | 2200 | 1000 | 40 | 139 | 214 | 316 | 63 | 97 | 143 |
| VGBS 30000 | 30000 | 22127 | 144:1 | 93:1 | 63:1 | 122.6 | 78.7 | 53.3 | 3350 | 1000 | 40 | 110 | 171 | 253 | 50 | 78 | 115 |
| VGBS 50000 | 50000 | 36880 | 186:1 | 124:1 | 87:1 | 158.1 | 105.7 | 74 | 4800 | 1000 | 40 | 142 | 213 | 304 | 65 | 96 | 138 |

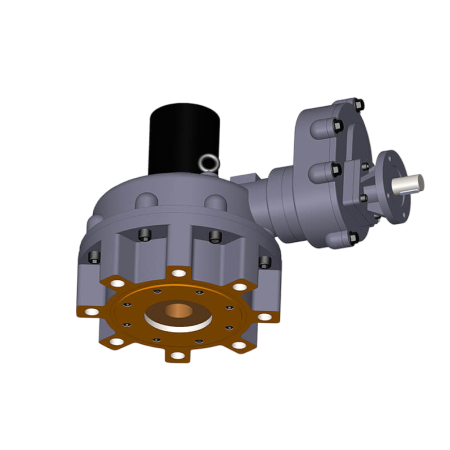

Multi-Turn Bevel Gearbox with Spur Gearbox (VGBES Models for Actuator Operation)
Engineered for high-thrust gate & globe valves, our VGBES series delivers 1,000-50,000 Nm torque with 90° input/output alignment and ISO 5210 flanges, ideal for automated systems in water, power & industrial plants needing precise, heavy-duty control.
Get a Quote
| Viral Ind. Model No. | Output Torque Capacity | Gear Ratio | M.A. (±10%) | Thrust (kN.) | Input Torque Capacity | Mounting Flange at Actuator Side (ISO 5210) | ||||||||||
| Nm. | lbf-ft | |||||||||||||||
| Nm. | lbf-ft | A | B | C | A | B | C | A | B | C | A | B | C | |||
| VGBES 1000 | 1000 | 738 | 14:1 | 9:1 | 7:1 | 11.6 | 7.7 | 6.3 | 230 | 86 | 130 | 158 | 63 | 96 | 117 | F10, F14 |
| VGBES 1500 | 1500 | 1106 | 19:1 | 12:1 | 10:1 | 16.1 | 10.6 | 8.7 | 263 | 93 | 141 | 172 | 69 | 104 | 127 | F10, F14 |
| VGBES 2500 | 2500 | 1844 | 37:1 | 25:1 | 17.5:1 | 31.3 | 21.3 | 14.8 | 326 | 80 | 117 | 168 | 59 | 87 | 124 | F10, F14 |
| VGBES 4000 | 4000 | 2950 | 46:1 | 31:1 | 21:1 | 39.1 | 26.2 | 18.1 | 450 | 102 | 153 | 221 | 75 | 113 | 163 | F10, F14 |
| VGBES 6000 | 6000 | 4425 | 47:1 | 33:1 | 23:1 | 40.3 | 27.8 | 19.6 | 680 | 149 | 216 | 306 | 110 | 159 | 225 | F10, F14 |
| VGBES 8000 | 8000 | 5900 | 58:1 | 38:1 | 26:1 | 49.4 | 32.5 | 22.1 | 900 | 162 | 246 | 362 | 119 | 182 | 267 | F10, F14 |
| VGBES 10000 | 10000 | 7376 | 60:1 | 41:1 | 29:1 | 51.3 | 34.9 | 24.5 | 1150 | 195 | 286 | 408 | 144 | 211 | 301 | F10, F14, F16 |
| VGBES 13000 | 13000 | 9588 | 65:1 | 43:1 | 30:1 | 55:5 | 37 | 25.6 | 1420 | 234 | 351 | 508 | 173 | 259 | 375 | F14, F16 |
| VGBES 16000 | 16000 | 11801 | 65:1 | 43:1 | 30:1 | 55.5 | 37 | 25.6 | 1650 | 288 | 432 | 626 | 213 | 319 | 462 | F14, F16 |
| VGBES 20000 | 20000 | 14751 | 76:1 | 49:1 | 33.5:1 | 64.7 | 42 | 28.5 | 2200 | 309 | 476 | 702 | 228 | 351 | 518 | F14, F16 |
| VGBES 30000 | 30000 | 22127 | 144:1 | 93:1 | 63:1 | 122.6 | 78.7 | 53.3 | 3350 | 245 | 381 | 563 | 181 | 281 | 415 | F14, F16 |
| VGBES 50000 | 50000 | 36880 | 186:1 | 124:1 | 87:1 | 158.1 | 105.7 | 74 | 4800 | 316 | 473 | 675 | 233 | 349 | 498 | F14, F16, F25 |
Valve Mounting Detail
Ensure seamless integration, our multi-turn bevel gearboxes support ISO 5210 flanges (F10 to F60) and spindle diameters from 30mm to 180mm, designed for a perfect fit with gate, globe & sluice valves across global industrial applications.
| Viral Ind. Model No. | Valve Side Mounting Flange (ISO 5210) | Max. Spindle (Stem) Diameter With Threading (mm) |
|---|---|---|
| VGB 300 | F12, F10 | 30 |
| VGB 470 | F14, F12 | 37 |
| VGB 600 | F14, F12 | 45 |
| VGB 1000 / VGBS 1000 | F16, F14 | 55 |
| VGB 1500 / VGBS 1500 | F25, F16 | 57 |
| VGB 2500 / VGBS 2500 | F30, F25 | 70 |
| VGB 4000 / VGBS 4000 | F30, F25 | 75 |
| VGB 6000 / VGBS 6000 | F35, F30 | 100 |
| VGB 8000 / VGBS 8000 | F40, F35 | 110 |
| VGB 10000 / VGBS 10000 | F40, F35 | 115 |
| VGB 13000 / VGBS 13000 | F40, F35 | 125 |
| VGB 16000 / VGBS 16000 | F48, F40 | 130 |
| VGB 20000 / VGBS 20000 | F48, F40 | 150 |
| VGB 30000 / VGBS 30000 | F48, F40 | 170 |
| VGB 50000 / VGBS 50000 | F60, F48 | 180 |
Features:
- Clockwise rotation of input will give clockwise rotation of output.
- Bearings supported assembly.
- Suitable for Actuator operation.
- Removable stem sleeve.
- Grease Lubricant Gearbox.
- Spur Gear Attachment to reduce effort.
- Available for marine application.
- Available for Non-Rising stem valve.
Temperature Limit:
- Normal application -20˚C To 120˚C
- High temperature application up to 150˚C
- Low temperature application up to -50˚C
Material Options for Stem Sleeve:
- AB-2, Ni-D2, S.G.Iron, Manganese Bronze
Enclosure:
- IP-65 ,IP-67, IP-68
