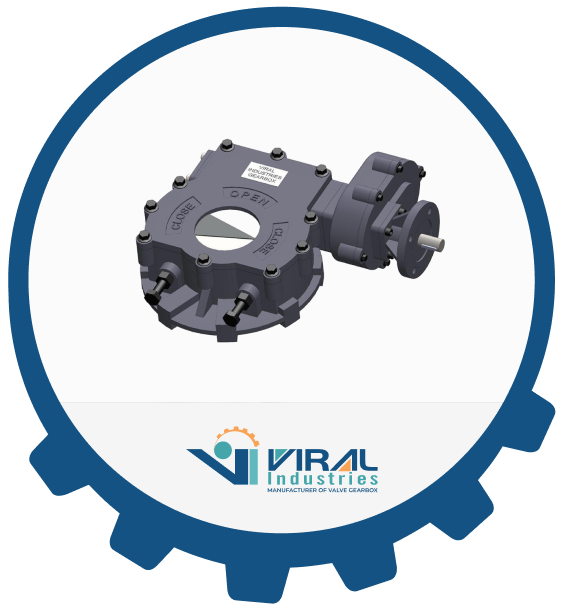

Viral Industries is a renowned ball valve Gearbox manufacturer, supplier & exporter in the USA, Europe, Canada, and Gulf. A ball valve gearbox is a mechanical device that controls the flow of liquids or gases through a pipe or valve. A ball valve gearbox consists of a ball-shaped component attached to a shaft. A gearbox connects to it. Depending on the direction of the gearbox's rotation, you can open or close the valve by rotating the ball. Industries such as oil and gas, water treatment, and chemical processing often use ball valve gearboxes, where precise fluid flow control is critical. They are commonly used in manual and automated systems for their reliability, simplicity, and durability. A gearbox is used to provide the necessary torque to turn the ball and allow the valve to be opened or closed with minimal effort.

A ball valve Gearbox manufacturer - Viral industries is a company that specializes in producing ball valve gearboxes. We ensure high quality and reliable performance for our customers. Furthermore, our ball valve gearboxes can deliver torque ranging between 800 Nm - 500000 Nm (590 lbf-ft - 3,68,800 lbf-ft).

Note: Our manufacturing unit is only in India, but we export ball valve Gearboxs to the USA, Europe, Canada, and Gulf.

  1. Ball Valve Gearbox (VW Models for Manual or Hand-Wheel Operation)

Viral Ind.
Model No.
Output torque capacity Ratio M A
(±10%)
Hand-wheel Diameter Hand-wheel Effort
Nm. lbf-ft mm inch lbs kilogram
VW-07 800 590 40 14 250 10 102.8 46.6
VW-10 1,100 811 42 15 400 16 82.5 37.4
VW-15 1,800 1,327 42 16 400 16 126.5 57.4
VW-20 2,400 1,770 52 20 500 20 108.0 49.0
VW-30 3,700 2,729 52 20 600 24 138.7 62.9
VW-40 4,500 3,320 55 21 600 24 160.7 72.9
Ball Valve Gearbox (VW Models for Manual or Hand-Wheel Operation)

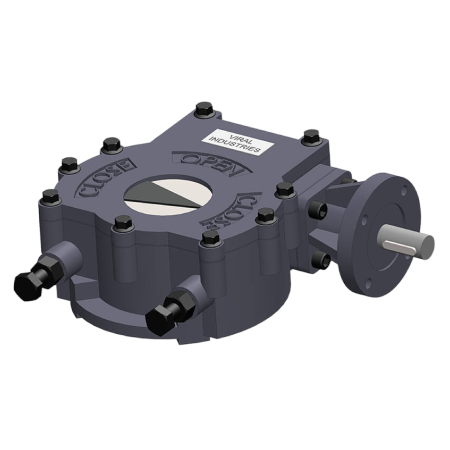

  1. Ball Valve Gearbox (VWE Models for Actuator Operation)

Ball Valve Gearbox (VWE Models for Actuator Operation)
Viral Ind.
Model No.
Output torque capacity Ratio M A
(±10%)
Input torque capacity Mounting Flange at Actuator Side (ISO 5211)
Nm. lbf-ft Nm. lbf-ft
VWE-07 800 590 40 14 57 42 F10, F14
VWE-10 1,100 811 42 15 73 54 F10, F14
VWE-15 1,800 1,327 42 16 112 83 F10, F14
VWE-20 2,400 1,770 52 20 120 88.5 F10, F14
VWE-30 3,700 2,729 52 20 185 137 F10, F14
VWE-40 4,500 3,320 55 21 214 158 F10, F14, F16

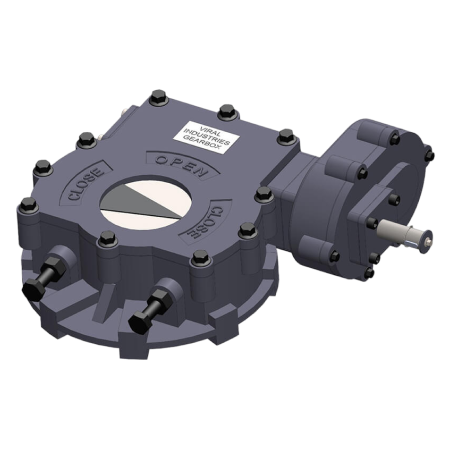

  1. Ball Valve Gearbox (VWSGA Models for Manual or Hand-Wheel Operation)

Viral Ind.
Model No.
Output torque capacityRatioM A
(±10%)
Hand-wheel DiameterHand-wheel Effort
Nm.lbf-ftmminchlbskilogram
VWSGA-404,5003,320165546002462.428.3
VWSGA-606,0004,425194626002472.632.9
VWSGA-808,0005,900220706002485.738.9
VWSGA-10010,0007,375300956002478.935.8
VWSGA-15015,00011,0634491437002867.430.6
VWSGA-25025,00018,4406051907002884.638.4
VWSGA-35035,00025,8159923207002870.331.9
VWSGA-50050,00036,87810393407002894.542.9
VWSGA-75075,00055,31714254617503097.644.3
VWSGA-10001,00,00073,756176856910004079.135.9
VWSGA-15001,50,0001,10,6352109655100040106.348.2
VWSGA-20002,00,0001,47,5122381762100040118.153.6
VWSGA-25002,50,0001,84,3902510800100040140.663.8
VWSGA-37503,75,0002,76,58533321051100040160.572.8
VWSGA-50005,00,0003,68,80038081208100040186.284.5
Ball Valve Gearbox with Spur Gearbox (VWSGA Models for Manual or Hand-Wheel Operation)

  1. Ball Valve Gearbox with Spur Gearbox (VWESGA Models for Actuator Operation)

Ball Valve Gearbox with Spur Gearbox (VWESGA Models for Actuator Operation)
Viral Ind.
Model No.
Output torque capacityRatioM A
(±10%)
Input torque capacityMounting Flange at Actuator Side
(ISO 5211)
Nm.lbf-ftNm.lbf-ft
VWESGA-404,5003,320165548361F10,F14
VWESGA-606,0004,425194629771F10, F14
VWESGA-808,0005,9002207011484F10, F14
VWESGA-10010,0007,3753009510578F10,F14
VWESGA-15015,00011,06344914310577F10, F14
VWESGA-25025,00018,44060519013297F10, F14
VWESGA-35035,00025,81599232010981F10, F14
VWESGA-50050,00036,8781039340147108.5F10, F14
VWESGA-75075,00055,3171425461163120F10, F14
VWESGA-1000100,00073,7561768569176130F10,F14, F16
VWESGA-15001,50,0001,10,6352109655236174F10, F14, F16
VWESGA-20002,00,0001,47,5122381762262.5194F10, F14, F16
VWESGA-25002,50,0001,84,3902510800312.5230.5F10, F14, F16
VWESGA-37503,75,0002,76,58533321051357263F10, F14, F16
VWESGA-50005,00,0003,68,80038081208414305F10,F14, F16

Valve Mounting Detail

Viral Ind. Model No.Valve Side Mounting Flange (ISO 5211)Max. Spindle Diameter (mm)
VW-07 / VWE-07F10, F0735
VW-10 / VWE-10F12, F1045
VW-15 / VWE-15F14, F1250
VW-20 / VWE-20F16, F14, F1255
VW-30 / VWE-30F14, F1660
VW-40 / VWE-40F16, F2570
VWSGA-40 / VWESGA-40F16, F2570
VWSGA-60 / VWESGA-60F16, F2580
VWSGA-100 / VWESGA-100F16, F25, F3085
VWSGA-150 / VWESGA-150F30, F35100
VWSGA-250 / VWESGA-250F30, F35, F40110
VWSGA-350 / VWESGA-350F35, F40120
VWSGA-500 / VWESGA-500F35, F40155
VWSGA-750 / VWESGA-750F35, F40, F48185
VWSGA-1000 / VWESGA-1000F40, F48185
VWSGA-1500 / VWESGA-1500F48, F60230
VWSGA-2000 / VWESGA-2000F48, F60270
VWSGA-2500 / VWESGA-2500F48, F60300
VWSGA-3750 / VWESGA-3750F48, F60300
VWSGA-5000 / VWESGA-5000F48, F60350

Features:

  • Clockwise rotation of input will give clockwise rotation of output.
  • Self-Locking gearbox.
  • Bearings supported assembly.
  • Suitable for Actuator operation.
  • Grease Lubricant Gearbox.
  • Higher ratio options to reduce effort.
  • Locking Arrangement.
  • Available for marine application.
  • Available for horizontal hand-wheel orientation

Enclosure:

  • IP-65 ,IP-67, IP-68

Temperature Limit:

  • Normal application -20˚C To 120˚C
  • High temperature application up to 150˚C
  • Low temperature application up to -50˚C

Material Options for Worm-Wheel:

  • Phosphorus Bronze (PB-2)

Bore Options for Worm-Wheel Quadrant:

  • Round Shape with multiple key-way
  • Square Shape
  • Hexagon Shape
